Fittings / FORGED THREADED [ANSI B 16.11]

90° Elbow

cross

Tee

45° elbow


  A C H G B
Nominal Pipe Size Center-to-End Elbows, Tees, Crosses, A Center-to-End 45 deg Elbow, C Outside Diameter of Band, H Min. Wall Thickness, G Min. Length of Thread
(mm) (Inch) 2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000 B L2
6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35 6.4 6.7
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.30 6.60 8.1 10.2
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98 9.1 10.4
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6
20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53 12.7 13.9
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3
32 1.1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59 17.0 18.0
40 1.1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07 17.8 18.4
50 2 60 64 83 43 44 52 75 84 102 4.27 7.14 12.09 19.0 19.2
65 2.1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29 23.6 28.9
80 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64 25.9 30.5
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67 27.7 38.0

Dimensions in Millemeters "H" Dimensions to ASME 16.11

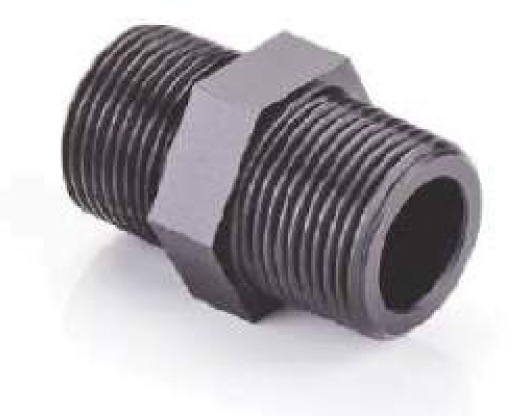

Fittings / HEX NIPPLES THREADED BS-3799 1974

Full Size

Reducing Size

Nominal Size A W E b C F
          3000 6000
DN Inch (Min.) (Min.) (Min.) (Min.) (Min.) (Min.) (Min.)
6 1/8" 11 26 10 5 2 6 -
8 1/4" 15 36 15 8 6 6 -
8x6 1/4"x1/8" 15 31 15 5 2 6 10
10 3/8" 18 40 16 11 8 8 -
10x8 3/8"x1/4" 18 39 16 8 6 8 15
15 1/2" 22 48 20 14 11 8 -
15x10 1/2"x3/8"
22 44 20 11 8 8 16
15x8 1/2"x1/4" 22 43 20 8 6 8 15
20 3/4" 28 52 21 19 13 10 -
20x15 3/4"x1/2" 27 50 21 14 11 9 20
20x10 3/4x3/8 27 46 21 11 8 9 16
25 1" 35 60 25 24 17 10 -
25x20 1"x3/4"
35 56 25 19 13 10 21
25x15 1"x1/2" 35 55 25 14 11 10 20
40 1-1/2" 50 68 26 38 30 16 -
40x25 1-1/2"x1" 50 67 26 24 17 16 25
40x20 1-1/2"x3/4" 50 63 26 19 13 16 21
40x15 1-1/2"x1/2" 50 62 26 14 11 16 20
50 2" 62 71 27 49 39 17 -
50x40 2"x1-1/2" 62 70 27 38 30 17 26
50x25 2"x1" 62 70 27 24 17 18 25
50x20 2"x3/4" 62 65 27 19 13 17 21
50x15 2"x1/2" 62 65 27 14 11 18 20

*Dimensions in millimeter.



Fittings / Couplings & Caps [ANSI B 16.11]

Coupling

HALF Coupling

CAP


Nominal Pipe Size W P D G B
    End to End Couplings
W
End to End Caps
P
Outside Diameter
D
Min. End Wall Thickness
G
Min. Length of thread
(mm) Inch 3000 & 6000 3000 6000 3000 6000 3000 6000 B L2
6 1/8 32 19 ... 16 22 4.8 ... 6.4 6.7
8 1/4 35 25 27 19 25 4.8 6.4 8.1 10.2
10 3/8 38 25 27 22 32 4.8 6.4 9.1 10.4
15 1/2 48 32 33 28 38 6.4 7.9 10.9 13.6
20 3/4 51 37 38 35 44 6.4 7.9 12.7 13.9
25 1 60 41 43 44 57 9.7 11.2 14.7 17.3
32 1. 1.4 67 44 46 57 64 9.7 11.2 17.0 18.0
40 1.1/2 79 44 48 64 76 11.2 12.7 17.8 18.4
50 2 86 48 51 76 92 12.7 15.7 19.0 19.2
65 2. 1/2 92 60 64 92 108 15.7 19.0 23.6 28.9
80 3 108 65 68 108 127 19.0 22.4 25.9 30.5
100 4 121 68 75 140 159 22.4 28.4 27.7 33.0
